Universal Swivel Head Milling Machine X6436/X6432
- Metalcnc
- Guangdong
- within 30days after payment
- 100sets per month
Chief is the machine manufacturer since 2001, the factory is located in Dongguan City, Guangdong. Our products range includes the CNC milling machine center, EDM cutting machine, CNC lathe machine, manual milling machine, manual lathe machine, kinds of machine accessories Etc.
Metalcnc is the branch brand of Chief, be setted this year, just for the manual machines like Lathe machine, verical turret milling machine, manual milling machine and kinds of machine accessories like linear scale, digital readout DRO, vise, clamping kit, drilling chuck, MPG...
Now we have three factories, and all are working well, no matter you need CNC machines or manual machines, or just wanna any spare parts, we can supply to you in one stop!

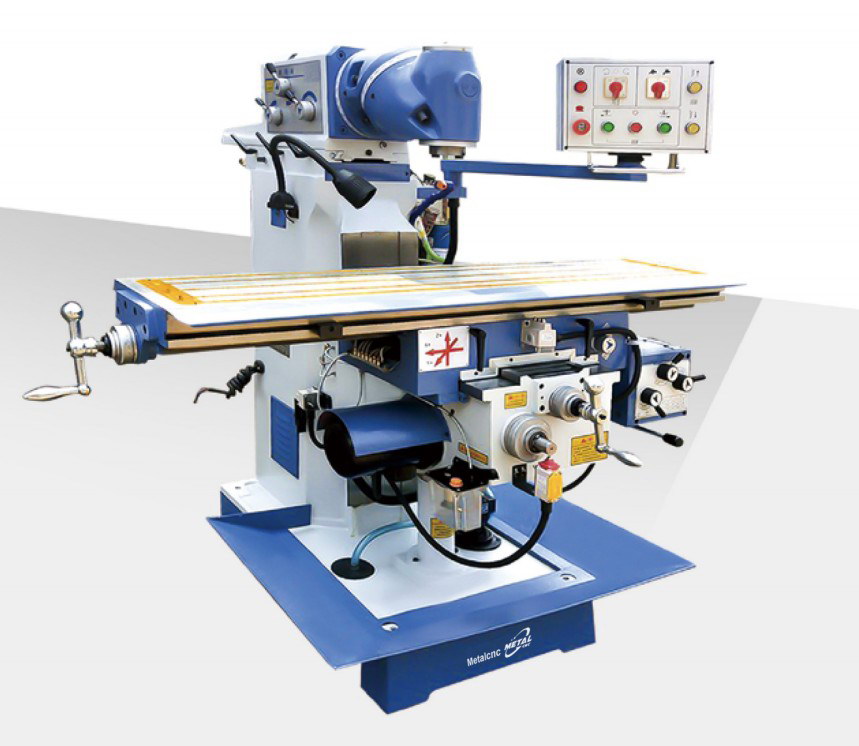

Universal Swivel Head Milling Machine X6436/X6432
Products Feature:
| Specification | UNIT | X6436 | X6432 |
| Worktable size | mm | 1320x360 | 1320x320 |
| Worktable travel | mm | 1000x300 | 1000x300(manual) |
| Number /wiidth /Distanceof T-slot | mm | 3-14-95 | 3-14-63 |
| Spindle taper | ISO50 | ISO40 | |
| Distance between spindle nose and table surface | mm | 170-570 | 220-670 |
| Distance between spindle axis and ram surface | mm | 230-730 | 100-600 |
| Spindle speed range (steps) | rpm | 58-1800 | 45-1660(V) 40-1300(H) |
Table power feed speed range in longitudinal | m/min | 22-420(X)22-393(Y)10-168(Z) | |
| Milling head swivel range | ±35° | ||
| Spindle nonor power | 360° | 360° | |
| Pverall dinension | kw | 4 | 3(V/H) |
| Machine weight | mm | 2070x2025x2020 | 2020x1710x1994 |
| Machine weight | kg | 2480 | 2100 |
Products Show:
