Radial Drilling Machine Z3040/Z3045/Z3050
- Metalcnc
- Guangdong
- within 30days after payment
- 100sets per month
Chief is the machine manufacturer since 2001, the factory is located in Dongguan City, Guangdong. Our products range includes the CNC milling machine center, EDM cutting machine, CNC lathe machine, manual milling machine, manual lathe machine, kinds of machine accessories Etc.
Metalcnc is the branch brand of Chief, be setted this year, just for the manual machines like Lathe machine, verical turret milling machine, manual milling machine and kinds of machine accessories like linear scale, digital readout DRO, vise, clamping kit, drilling chuck, MPG...
Now we have three factories, and all are working well, no matter you need CNC machines or manual machines, or just wanna any spare parts, we can supply to you in one stop!
Radial Drilling Machine Z3040/Z3045/Z3050
Specification:
| Specification | Unit | Z3040X13A | Z3040X13 | Z3050X16B | Z3045X14 | Z3050X16 |
| Max drilling dimater | mm | cast 40 steel 35 | cast 40 steel 35 | cast 50 steel 42 | cast 45 steel 40 | 50 |
| Distance form spindle to worktable | mm | 430-1210 | 140-1100 | 320-1020 | 260-1150 | 260-1150 |
| Distance from spindle to collumn | mm | 300-1100 | 360-1000 360-1300 | 350-1600 | 360-1400 | 350-1600 350-1300 |
| Spindle travel | mm | 220 | 220 | 300 | 280 | 220 |
| Spindle taper | 4 | 4 | 5 | 4 | 5 | |
| Spindle speed range | rpm | 34/75-1220 | 34/75-1220 | 78-1100 34-1280 | 34,78,145,75,130,500 260,430,920,380,760, 1280 | 78,135,240,350, 590,1100 |
| Spindle speed number | 6/12 | 6/12 | 6/12 | 12 | 6 | |
| Spindle feed range | rpm | 0.10/0.16/0.25 | 0.10-0.25 | 0.10-0.56 | 0.10/0.16/0.25 | 0.04-3.2 |
| Spindle feed number | 3 | 3 | 6 | 3 | 6 | |
| Arm swivel angle | ° | 360 | 360 | 360 | 360 | 360 |
| Main motor power | kw | 2.2 | 2.2 | 4 | 3 | 4 |
| Elevating motor power | kw | 1.1 | 1.1 | 1.5 | 1.5 | 1.5 |
| Machine weight | kg | 1400 | 1200/1300 | 2200 | 1700 | 2300/2400 |
| Machine size | mm | 1830x780x2350 | 1800x705x2300 | 2250x950x2500 | 1850x840x2300 | 2300x1060x2800 |

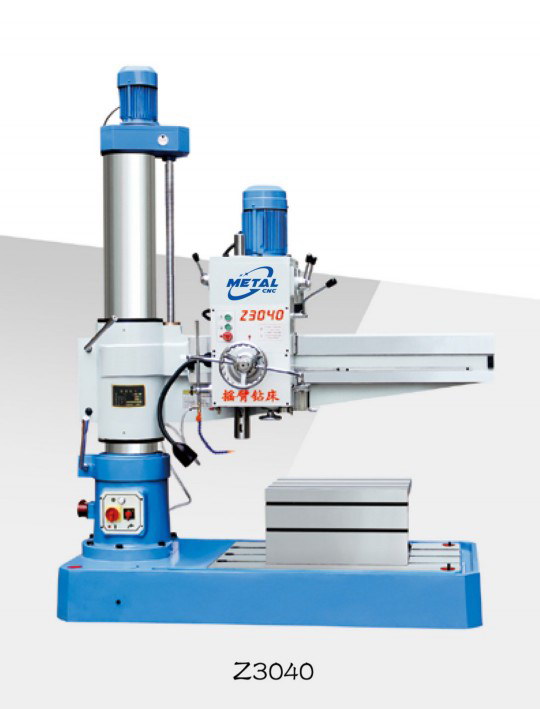

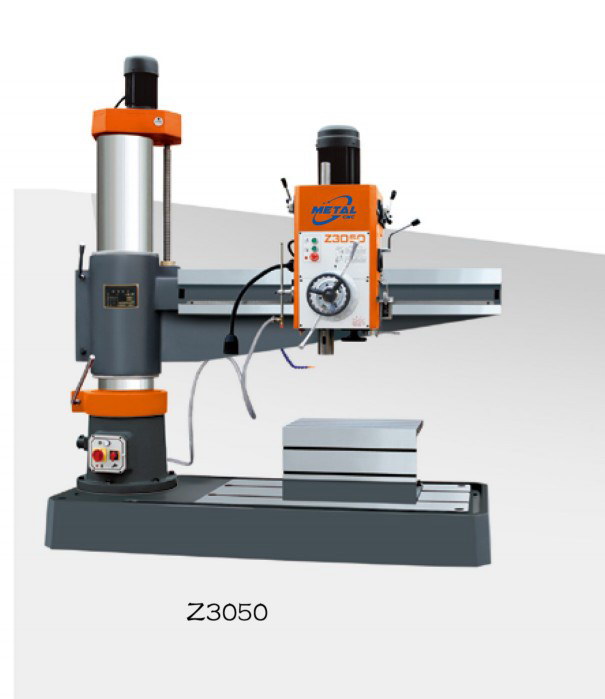

Products Show:
If you need any more information for this machine, pls just feel free to leave us message.
