Milling Machine X5032/X6132
- Metalcnc
- Guangdong
- within 30days after payment
- 100sets per month
Chief is the machine manufacturer since 2001, the factory is located in Dongguan City, Guangdong. Our products range includes the CNC milling machine center, EDM cutting machine, CNC lathe machine, manual milling machine, manual lathe machine, kinds of machine accessories Etc.
Metalcnc is the branch brand of Chief, be setted this year, just for the manual machines like Lathe machine, verical turret milling machine, manual milling machine and kinds of machine accessories like linear scale, digital readout DRO, vise, clamping kit, drilling chuck, MPG...
Now we have three factories, and all are working well, no matter you need CNC machines or manual machines, or just wanna any spare parts, we can supply to you in one stop!
Milling Machine X5032/X6132
Products Feature:
| Specification | UNIT | X5032 | X6132 |
| Table size | mm | 1325x320(1600x320) | 1325x320(1600x320) |
| No .of T-slots | 3 | 3 | |
| Width of T-slots | mm | 18 | 18 |
| Max.load | kg | 600 | 600 |
| Longitudinal travel (manual/Auto) | mm | 700/680(900/800) | 700/680(900/800) |
| Cross travel (manual/Auto) | mm | 255/240 | 255/240 |
| Vertical travel (manual/Auto) | mm | 370/350(460/440) | 320/300(410/390) |
| Cutting feed speed | mm/min | X:19-950 Y:19-950 Z:6.3-317 | X:19-950 Y:19-950 Z:6.3-317 |
| Rapid feed speed | mm/min | X:2300 Y:1540 Z:770 | X:2300 Y:1540 Z:770 |
| spindle speed range | r/min | 30-1500 | 30-1500 |
| spindle speed step | 18 | 18 | |
| Distance between spindle axis and table surface | mm | 30-500 | 30-350 |
| table feed range (X/Y/Z) | 23.5-1180/23.5/1180/8-394 | 23.5-1180/23.5/1180/8-394 | |
| Power of spindle motor | kw | 7.5 | 7.5 |
| Overall dimension (L x W x H) | mm | 2530x1890x2380 | 2294x1770x1610 |
| Net weight | kg | 2900 | 2650/2950 |

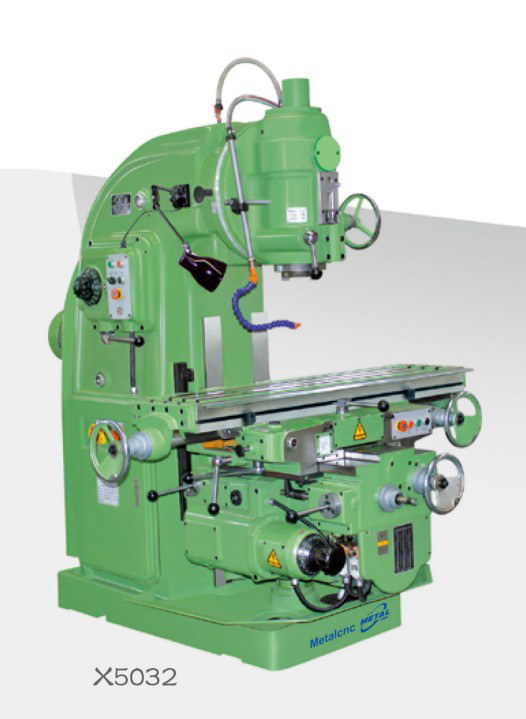

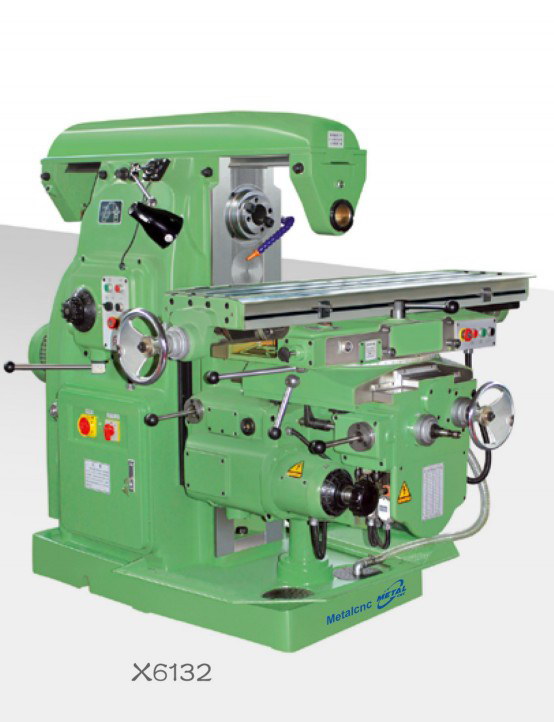

Products Show:
If you need any more information for this machine, pls just feel free to leave us message.
