Universal Milling Machine X6036/X5036
- Metalcnc
- Guangdong
- within 30days after payment
- 100sets per month
Chief is the machine manufacturer since 2001, the factory is located in Dongguan City, Guangdong. Our products range includes the CNC milling machine center, EDM cutting machine, CNC lathe machine, manual milling machine, manual lathe machine, kinds of machine accessories Etc.
Metalcnc is the branch brand of Chief, be setted this year, just for the manual machines like Lathe machine, verical turret milling machine, manual milling machine and kinds of machine accessories like linear scale, digital readout DRO, vise, clamping kit, drilling chuck, MPG...
Now we have three factories, and all are working well, no matter you need CNC machines or manual machines, or just wanna any spare parts, we can supply to you in one stop!
Universal Milling Machine X6036A/X5036B
Products Feature:
| Specification | UNIT | X6036A | X6036B/B-1 | X5036A | X5036B |
| Spindle bore taper | mm | 7:24 ISO50 | 7:24 ISO50 | 7:24 ISO50 | 7:24 ISO50 |
| Spindle end to table distance | mm | 60-500 | 60-500 | 60-540 | 60-540 |
| Spindle hole center to cantilever plane distance | mm | 175 | 175 | 325 | 325 |
| Spindle speed range | rpm | (12G）60-1800 | (12G）60-1800 | (12G）60-1700 | (12G）60-1700 |
| Working desk size | mm | 1500-360 | 1500-360 | 1500-360 | 1500-360 |
| Workbench trip | mm | 700x320x450 | 1000x320x450 (1200x320)x450 | 830x320 | 1000x320x480 |
| Motor power | kw | 4(5.5)/1.1/0.75 | 4(5.5)/1.1/0.75 | 4(5)/0.75/1.1/0.09 | 4(5)/0.75/1.1/0.09 |
| Dimensions | mm | 1880x1700x1700 | 2220x2600x1880 | 1700x1680x1880 | 2220x2600x1880 |
| Machine weight | kg | 2200 | 2400 | 2200/2300 | 2400/2600 |

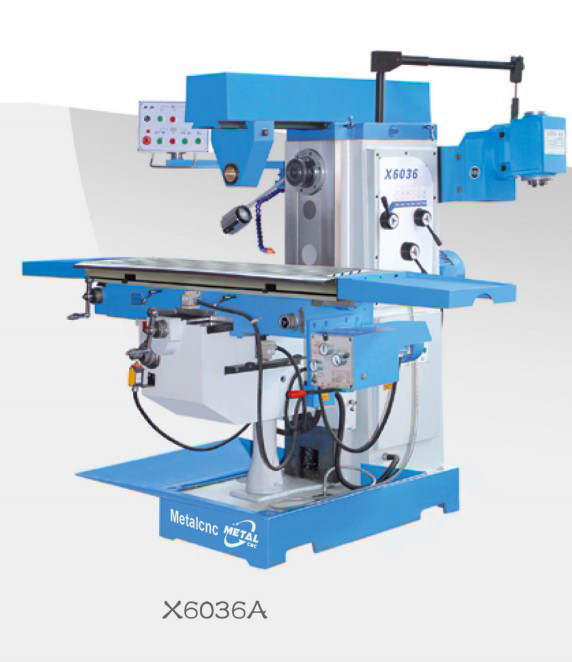

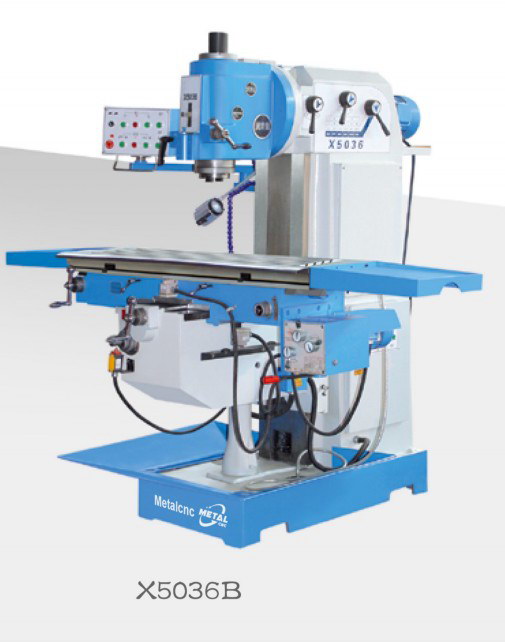

Products Picture:
If you need any more information for this machine, pls just feel free to leave us message.
