Milling Machine XQ5032/X6128
- Metalcnc
- Guangdong
- within 30days after payment
- 100sets per month
Chief is the machine manufacturer since 2001, the factory is located in Dongguan City, Guangdong. Our products range includes the CNC milling machine center, EDM cutting machine, CNC lathe machine, manual milling machine, manual lathe machine, kinds of machine accessories Etc.
Metalcnc is the branch brand of Chief, be setted this year, just for the manual machines like Lathe machine, verical turret milling machine, manual milling machine and kinds of machine accessories like linear scale, digital readout DRO, vise, clamping kit, drilling chuck, MPG...
Now we have three factories, and all are working well, no matter you need CNC machines or manual machines, or just wanna any spare parts, we can supply to you in one stop!
Milling Machine XQ5032/X6128
Products Feature:
| Specification | XQ5032 | X6128 |
| spindle taper | 7:24 ISO50 | 7:24 ISO40 |
| Spindle nose to table ditance | 60-420 | 0-400 |
| spindle hole center to cantilever plane | 175 | |
| vertical guide surface distance spindle center to bed | 320 | 400 |
| range of spindle speeds | (12 Grade）40-1300 | 40-1300 |
| vertical milling head turning angle | ±45± | 45 |
| size of table | 1500x320 | 1200x280/1500x280 |
| table travel (vertical /horizontal/vertical) | 980/320/420 | 700x300x430 |
| table longitudinal /transverse motor feed rate | (12 Grade step）40-1300 | (12 Grade step）40-1300 |
| workbench vertical montorized lift speed | 590 | optional |
| the main driver motor feed motor | 7.5 | 2.2 |
| bench motor feed motor | 750 | 750 |
| lifts motorized lift motor power | 1100 | 1100 |
| cooling pump motor power | 90 | 90 |
| cooling pump flow | 25L/MIN | 25L/MIN |
| overall dimensions of machine | 1600*1700*1800 | 1600*1300*2200 |
| NW/GW | 1600/1700 | 1270/1360 |

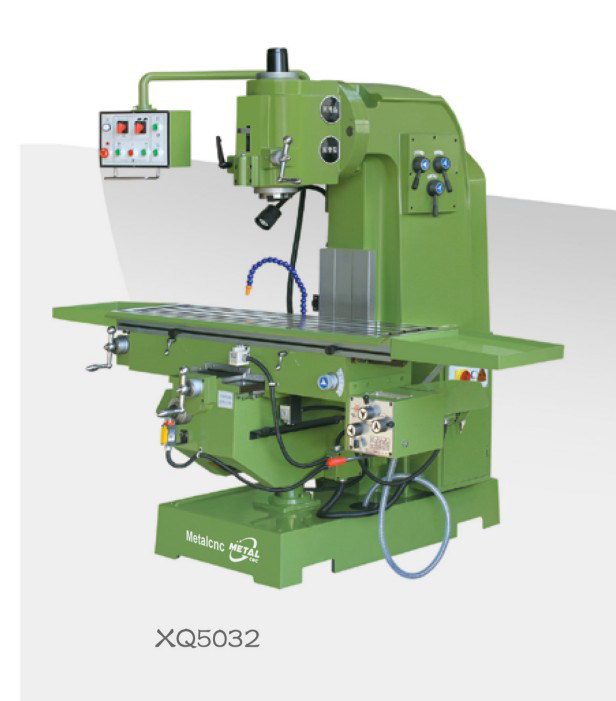

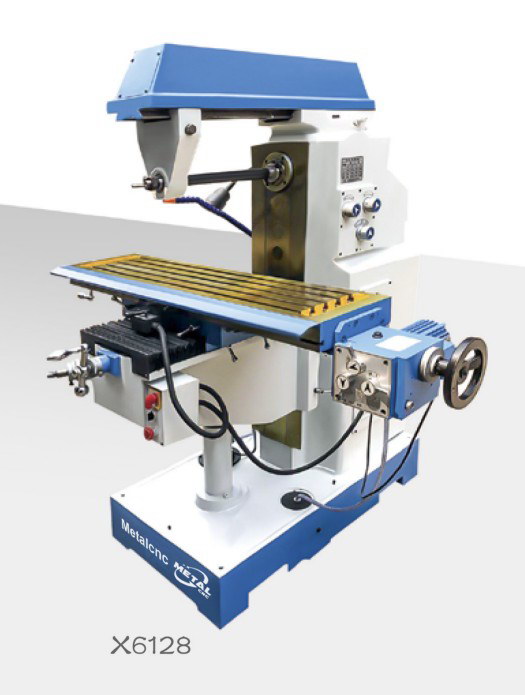

Products Pictures:
If you need any more information for this machine, pls just feel free to leave us message.
