Drlling Milling Mchine ZX6350A/ZX6350C
- Metalcnc
- Guangdong
- within 30days after payment
- 100sets per month
Chief is the machine manufacturer since 2001, the factory is located in Dongguan City, Guangdong. Our products range includes the CNC milling machine center, EDM cutting machine, CNC lathe machine, manual milling machine, manual lathe machine, kinds of machine accessories Etc.
Metalcnc is the branch brand of Chief, be setted this year, just for the manual machines like Lathe machine, verical turret milling machine, manual milling machine and kinds of machine accessories like linear scale, digital readout DRO, vise, clamping kit, drilling chuck, MPG...
Now we have three factories, and all are working well, no matter you need CNC machines or manual machines, or just wanna any spare parts, we can supply to you in one stop!
Drilling Milling Machine ZX6350A ZX6350C
Products Feature:
| Specification | UNIT | ZX6350A | ZX6350C |
| Maximum drilling diameter | mm | 50 | 50 |
| Maximum end milling width | mm | 100 | 500 |
| Maximum vertical milling diameter | mm | 25 | 25 |
| Maximum boring dismeter | mm | 120 | 120 |
| Maximum tapping diameter | mm | M16 | M16 |
| Spindle table | ISO40#/7:24 MT4 | ISO40#/7:24 MT4 | |
| Distance between spindle nose and surface of worktable | mm | 80-460 | 80-460 |
| Spindle speed range | rpm | (Vertical）115-1750（horizontal）40-1300 | (Vertical）40-1400（horizontal）40-1300 |
| Spindle travel | mm | 120(Vertical） | 120(Vertical） |
| Worktable size | mm | (1500)1200x280 | 1200x280(1500x280) |
| Worktable travel | mm | (980)650x300x400 | 700x300x430 |
| Dimensions | mm | 1680x1480x2250 | 1600x1300x2200 |
| Motor power | mm | (Vertical）1.5/2.2（horizontal）2.2 | (Vertical）1.5/2.2（horizontal）2.2 |
| Weight | mm | 1450/1560 | 1270/1360 |

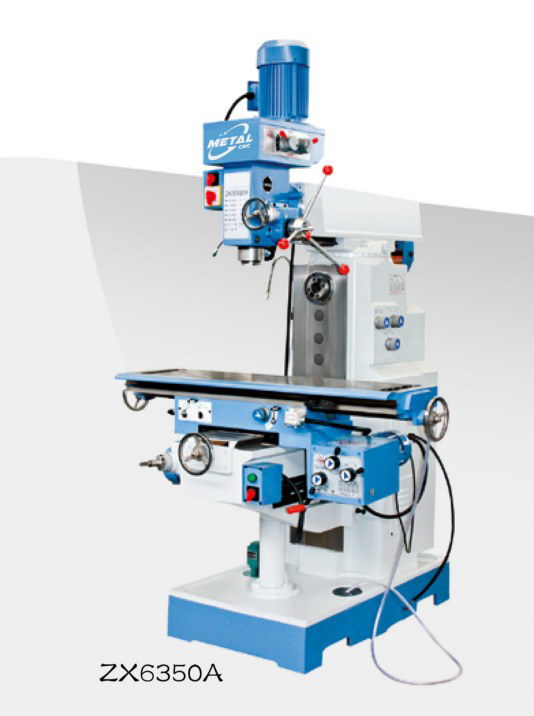

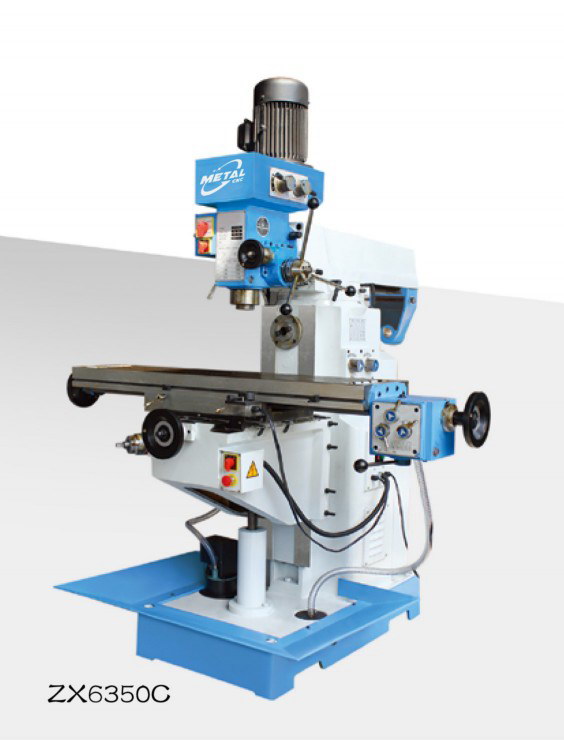

Products Show:
If you need any more information for this machine, pls just feel free to leave us message.
