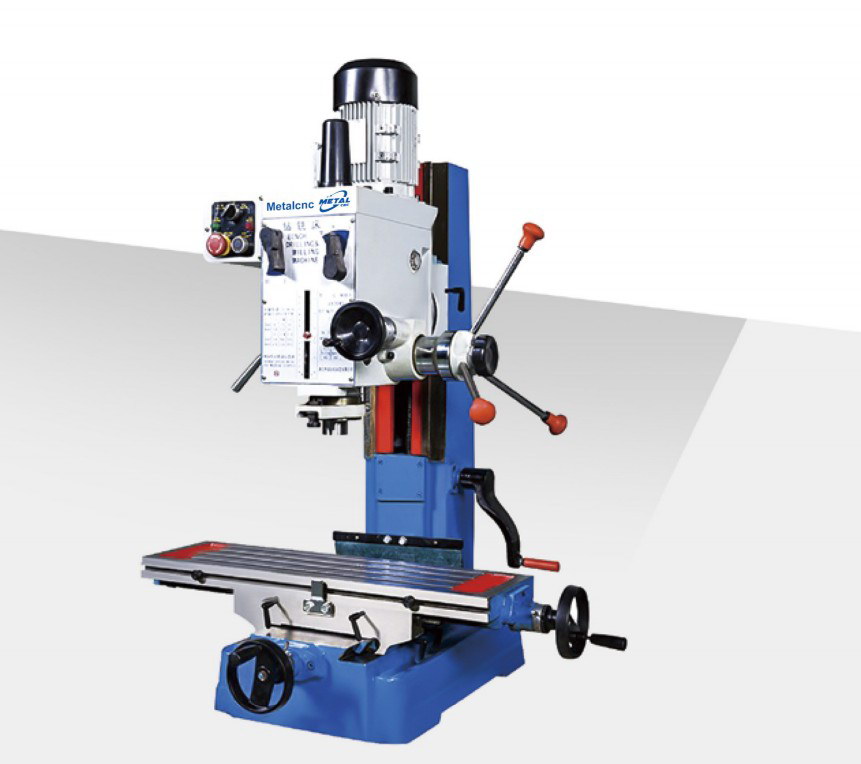

Bench Drilling Milling Machine ZX

Bench Drilling Milling Machine ZX

Brand Metalcnc
Product origin Guangdong
Delivery time within 30days after payment
Supply capacity 100sets per month

Chief is the machine manufacturer since 2001, the factory is located in Dongguan City, Guangdong. Our products range includes the CNC milling machine center, EDM cutting machine, CNC lathe machine, manual milling machine, manual lathe machine, kinds of machine accessories Etc.
Metalcnc is the branch brand of Chief, be setted this year, just for the manual machines like Lathe machine, verical turret milling machine, manual milling machine and kinds of machine accessories like linear scale, digital readout DRO, vise, clamping kit, drilling chuck, MPG...
Now we have three factories, and all are working well, no matter you need CNC machines or manual machines, or just wanna any spare parts, we can supply to you in one stop!

Email

Download

Bench Drilling Milling Machine

Products Feature:

Specification	UNIT	ZX7016	ZX7025	ZX7032	ZX7045
Max.drilling capacity	mm	16	25	31.5	45
Max.face mill capacity	mm	40	63	80	80
Max.drilling of vertical milling	mm	10	13	22	28
Spindle travel	mm	80	110	130	120
Distance spindle axis to column generating line	mm	182	240	202	260
Max.drilling spindle nose to table	mm	360	510	460	475
Spindle taper		MT2	MT3	MT3	MT4
Spindle speeds range	r/min	320-3300	290-2150	100-2150	95-1600
Spindle speeds series		12	5	12	6
Dimension of worktable surface	mm	420x152	555x195	Standard:730x210 select:820x240	Standard:730x210 select:820x240
Worktable travel	mm	230x120	240x140	Standard:450x170 select:540x170	Standard:450x170 select:540x170
Overall height	mm	900	1130	1100	1050
Main motor	W	550	750(P)	Single-phase:1100 Three-phase:1500	Single-phase:1100 Three-phase:1500
G.W/N,W	KG	100/75	190/160	285/250	318/278
Packing dimension	cm	65x58x77	87x67x102	97x77x124	97x77x116
