EDM Cutting Machine JFC-500(CNC E.D.M)
- Chief
- Guangdong
- within 30days after payment
- 100sets per month
Chief CNC started from 2001, the technology is from Taiwan. Our CNC EDM Machine has the following features:
1.Multi cavities machining
2.XY mode:circle orbit machining for internal circle fine machining
3.XYZ mode:hexagon orbit machining for hexagon orbit
4.fine machining
5.We keep stock for regular models for cnc milling center, can make the shipment within 20days.
EDM cutting machine JFC-500 (CNC E.D.M)
Feature:
1.Multi cavities machining
2.XY mode:circle orbit machining for internal circle fine machining
3.XYZ mode:hexagon orbit machining for hexagon orbit
4.Fine machining
CNC E.D.M functions | |||||
Multi cavities machining | External side machining | Internal side machining | Auto center finder | Auto internal center finer | |
XY mode:circle orbit machining for internal circle fine machining | XY mode:square orbit machining for internal circle fine machining | XZ/YZ mode: internal cavity square machining | XY mode: +type orbit machining for internal/external single side machining | XZ/YZ mode: X type orbit machining for internal square corner machining | XY mode: hexagon orbit machining for internal hexagon corner machining |
XYZ mode:hexagon orbit machining for hexagon orbit fine machining | XZ/YZ modes: internal circle orbit machining | XZ/YZ mode: circle orbit machining for circle orbit fine machining | XY mode: circle incremental orbit machining for internal circle incremental orbit machining | XYZ mode: square orbit machining for square orbit fine machining | XY mode: square incremental orbit machining for internal square incremental orbit machining |
Specifications for EDM cutting machine JFC-500 (CNC E.D.M):
| Unit | JFC-500 | |
| Work tank | mm | 1370x720x450 |
| Work table | mm | 850x500 |
| Table travel (X) | mm | 500 |
| Table travel (Y) | mm | 400 |
| Table travel (Z) | mm | 300 |
| Table to electrode plate | mm | 390-690 |
| Maxelectrode weight | KG | 150 |
| Max workpiece weight | KG | 1800 |
| Machine net weight | KG | 2500 |
| Packing size | mm | 1800x1370x2400 |
| Filter box capacity | liter | 640 |
| Filtering box net | KG | 200 |

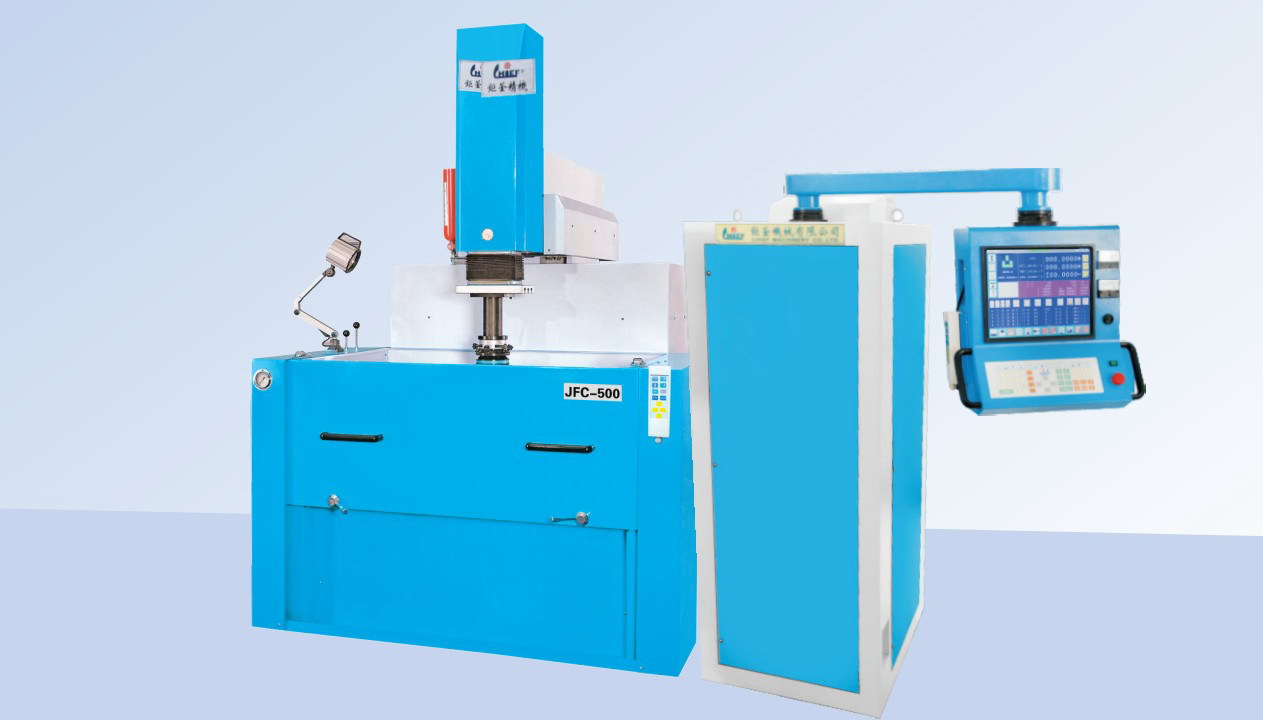

Products picture of EDM cutting machine JFC-500 (CNC E.D.M):
