Vertical Turret Milling Machine M4H
- Metalcnc
- Guangdong
- within 30days after payment
- 100sets per month
Chief is the machine manufacturer since 2001, the factory is located in Dongguan City, Guangdong. Our products range includes the CNC milling machine center, EDM cutting machine, CNC lathe machine, manual milling machine, manual lathe machine, kinds of machine accessories Etc.
Metalcnc is the branch brand of Chief, be setted this year, just for the manual machines like Lathe machine, verical turret milling machine, manual milling machine and kinds of machine accessories like linear scale, digital readout DRO, vise, clamping kit, drilling chuck, MPG...
Now we have three factories, and all are working well, no matter you need CNC machines or manual machines, or just wanna any spare parts, we can supply to you in one stop!

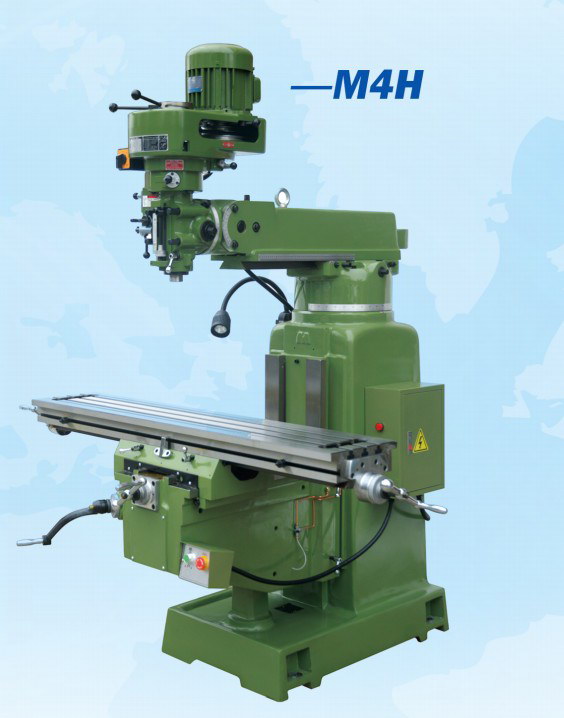

Vertical Turret Milling Machine M4H
Machine Specification:
| Vertical Turret Milling Machine M4H | |
| Table area | 305X1524(12”x60”） |
| Table travel | |
| X axis mm | 1050 |
| Y axis mm | 400 |
| Z axis mm | 400 |
| track | |
| Y axis mm | Square |
| Z axis mm | Square |
| Spindle | |
| Spindle dimension(mm) | R8/NT30 |
| Spindle Stroke(mm) | 127 |
| Spindle speed steps | 16 Speed（steps）variable |
| Spindle feed (mm) | 0.076/0.003” 0.038/0.0015” 0.203/0.008” |
| Spindle low speed(mm) | 66 110 175 270 550 930 1460 2270 variable speed |
| Spindle high speed r/min | 132 220 350 540 1100 1860 2920 4540/60 4200 |
| T slot | |
| Number of slots x width MM | 3X16 |
| T-slot spacing MM | 65 |
| Motor | |
| Voltage V | 220/380/415 |
| Frequency Hz | 50/60 |
| Head motor | 3HP |
| Cooling motor | 1/8HP |
| MOTOR-B | / |
| Max workpiece weight(kg) | 400 |
| Saddle width / length mm | 280X150 |
| Slide Stroke mm | 510 |
| Spindle diameter | 85.7 |
| Distance from spindle center to Frame | |
| Max mm | 120 |
| Min mm | 680 |
| Distance from spindle end to workbench | |
| Max mm | 100 |
| Min mm | 480 |
| Machine size（（LxWxH）mm | 2000X1680X2150 |
| Net weight KG | 1380 |
Machine Shows:
If you need any more information for this machine, pls just feel free to leave us message.
