CNC Engraving And Milling JFH1580
- Chief
- Guangdong
- within 30days after payment
- 100sets per month
JFH-1580 high speed engraving and milling machine Characteristics:
H-1580 engraving and milling machine is the first choice of Jufu company for large mold and large workpieces, which requires large cutting volume and faster speed. It can almost achieve the cutting amount of computer jump, but the speed is much faster than the latter. The processed products have good quality and high precision. The EDM has replaced the EDM processing, and enjoys a good reputation in the mold industry. jfh-1580 engraving and milling machine is the first choice of Jufu company for large mold and large workpieces, which requires large cutting volume and faster speed. It can almost achieve the cutting amount of computer jump, but the speed is much faster than the latter. The processed products have good quality and high precision. The EDM has replaced the EDM processing, and enjoys a good reputation in the mold industry.
CNC engraving And Milling JFH1580
Feature of Machines:
JFH series carved milling machine is the first selected machine for process large steel whose demand is large-size and high-speed cutting. In cutting aspect, it can nearly reach computer’s cutting capacity. But it’s faster than the latter. And the processed products have high quality and precision, and even it replace the electrical fire processing,So it enjoys good reputation in mold industry.
Specifications:
| JFH-1580 | |
| Control system (stemdard) | SYNTEC 21MA/LNC 628A |
| Drive motor | YASKAWA |
| NC system resolution | 0.001 |
| table size | 1200x600 |
| table travel | 1500x800x250 |
| Workbench bearing | 500 |
| Electric spindle power | 5.5 |
| Electric spindle speed | 9000-24000 |
| Matorrized spindle spring chuck | ER30 |
| Maximum speed | 15M/MIN |
| Biggest processing speed | 7.5M/MIN |
| longmen width | 760 |
| Packing size long X width X high | 350x160x210 |
| Machine power | 380V/12KW |
| Live shaflt to the workbench Max distance | 380 |
| Machine net weight | 4500 |

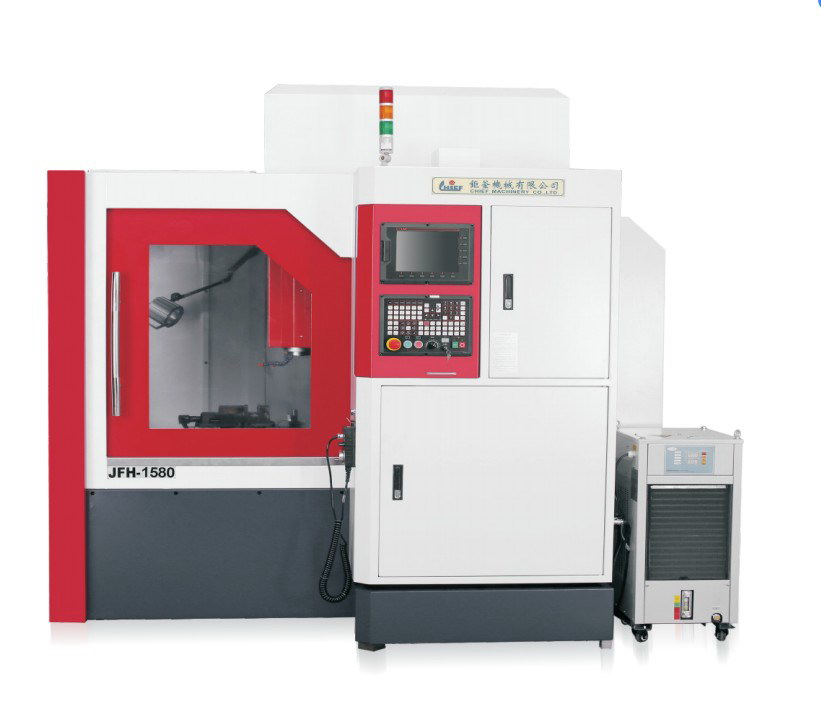

Products Pictures:
